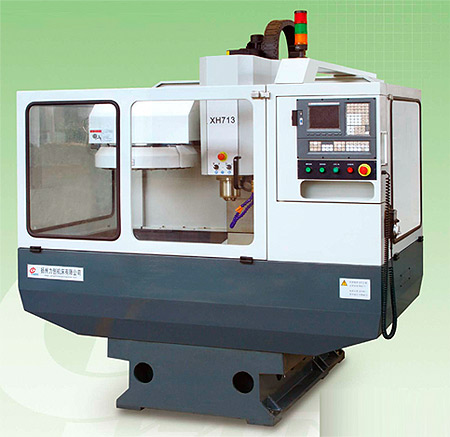

XH713/XH713G Specification

Name

XH713

XH713G

Worktable size

920×330mm

Max. loading capacity

300kg

T-slots

3×14×100mm

X-travel

650mm

Y-travel

400mm

Z-travel

500mm

Distance from spindle nose to table

100～600mm

Distance from spindle center to column

445mm

Spindle inner taper

ISO40

Tool

BT40/CAT40

Spindle speed range

100～8000/10000rpm

Cutting feed?? (X、Y)

1～5000mm/min

1～15000mm/min

(Z)

1～5000mm/min

1～5000mm/min

Rapid speed??? (X、Y)

10m/min

24m/min

(Z)

8m/min

8m/min

Power of main motor

7.5kW/11kW

Spindle torque

47Nm/70Nm

Positioning accuracy

0.025mm

Repositioning accuracy

0.015mm

Power supply

15kVA

Overall size(L×W×H)

211×204×205cm

Packing size(L×W×H)

222×213×222cm

Net weight/Gross weight

3100kg/3300kg

Standard accessories
※ 3-Axis box way
※ Spindle speed 8000rpm
※ Inverter motor
※ BT40 shrank
※ Auto lubration、coolant system
※ Air auto hold/release tool system
※ Electric hand wheel
※ Simple cover

Standard accessories
※ Wrenches
※ Retention knob
※ Collets

Optional configuration
※ X、Y axis Hiwin linear guide way (rapid travel speed 24m)
※ Spindle speed 10000rpm
※ CAT40 shrank
※ HNC18M、GSK980M、KND1000M、Siemens 802D SL、Fanuc 0i-mate MD (etc. control system)
※ Full cover
※ No. 4 axis
※ Bigger torgue 75Nm
